| Class | Wheel Arr- angement |
Dr. Dia. |
Cylinders Diameter x Stroke |
Boiler Press. |
Ad. Wt. |
EW WO |
Grate Area |
Evap. Surface |
Sup. Surface |
Remarks |
| A1 | 4-4-0 | 51in | 13¾x18in | 140psi | 16t | 25t | 14sq.ft. | 645sq.ft. | none | FL 1891,2 |
| A2 | 4-4-0 | 54in | 15(1)/21½(1)x22in | 175psi | 23t | 33t | 12sq.ft. | 880sq.ft. | none | Original |
| A2 | 4-4-0 | 54in | 15x22in | 175psi | 23t | 33t | 12sq.ft. | 880sq.ft. | none | Rebuilt |
| A3 | 2-4-6-0 | 51in | 13/20½x21¾in | 170psi | 42t | 48t | 36sq.ft. | 1820sq.ft. | none | Mallet |
| A50 | 4-4-0 | 50in | 14x20in | 150psi | 23t | 34t | 13sq.ft. | 730sq.ft. | none | BP 1885 |
| A51 | 4-4-0 | 39in | 12x16in | 150psi | 12t | 19t | 9sq.ft. | 460sq.ft. | none | NW 1886 |
| B1 | 2-6-0 | 39in | 14x18in | 170psi | 24t | 28t | 10sq.ft. | 675sq.ft. | none | Rogers 1890 |
| B2 | 4-6-0 | 50in | 17x24in | 170psi | 34t | 43t | 16sq.ft. | 1150sq.ft. | 325sq.ft. | ALCo 1904 |
| B3 | 4-6-0 | 54in | 17x24in | 170psi | 33t | 41t | 16sq.ft. | 1400sq.ft. | none | Borsig, Henschel |
| B3M | 4-6-0 | 54in | 17½x24in | 170psi | 39t | 49t | 16sq.ft. | 1095sq.ft. | 345sq.ft. | Ex B3, B7, B10 |
| B4 | 4-6-0 | 54in | 17x24in | 170psi | 34t | 44t | 16sq.ft. | 1180sq.ft. | 345sq.ft. | Baldwin 1905 |
| B4A | 4-6-0 | 50in | 17x24in | 170psi | 33t | 44t | 16sq.ft. | 1450sq.ft. | none | Baldwin 1904 |
| B4B | 4-6-0 | 42in | 15¼x20in | 170psi | 34t | 44t | 14sq.ft. | 785sq.ft. | none | Baldwin 1906 |
| B5 | 4-6-0 | 43in | 15x22in | 180psi | 28t | 36t | 16sq.ft. | 990sq.ft. | none | Borsig 1905 |
| B6 | 4-6-0 | 43in | 15x22in | 170psi | 28t | 36t | 15sq.ft. | 975sq.ft. | none | Hanomag 1906 |
| B7 | 4-6-0 | 54in | 17x24in | 170psi | 35t | 44t | 16sq.ft. | 1335sq.ft. | none | Henschel 1908 |
| B8 | 4-6-0 | 43in | 15x22in | 180psi | 32t | 41t | 16sq.ft. | 1060sq.ft. | none | ALCo 1908 |
| B9 | 4-6-2 | 54in | 17x26in | 170psi | 36t | 52t | 25sq.ft. | 1775sq.ft. | none | Original |
| B9 | 4-6-2 | 54in | 17x26in | 170psi | 37t | 54t | 25sq.ft. | 1465sq.ft. | 435sq.ft. | Rebuilt |
| B10 | 4-6-0 | 54in | 17x24in | 170psi | 35t | 44t | 16sq.ft. | 1170sq.ft. | 345sq.ft. | Borsig 1909 |
| B11 | 4-6-0 | 49in | 16x22in | 170psi | 28t | 35t | 16sq.ft. | 1000sq.ft. | none | Kerr Stuart 1909 |
| B12 | 4-6-2 | 57in | 20x26in | 200psi | 47t | 82t | 44sq.ft. | 2600sq.ft. | 650sq.ft. | Baldwin 1921 |
| B12A | 4-6-2 | 60in | 20x26in | 200psi | 47t | 82t | 44sq.ft. | 2600sq.ft. | 650sq.ft. | Baldwin 1921 |
| B13 | 4-6-2 | 60in | 20x26in | 200psi | 49t | 84t | 44sq.ft. | 2580sq.ft. | 630sq.ft. | Lima 1948 |
| B15 | 4-6-2 | 54in | 18½x24in | 215psi | 47t | 80t | 34sq.ft. | 2195sq.ft. | 745sq.ft. | |
| B21 | 4-6-2 | 54in | 19x26in | 160psi | 43t | 61t | 28sq.ft. | 1685sq.ft. | 310sq.ft. | FCCC M1A |
| B22 | 4-6-2 | 54in | 18x22in | 180psi | 36t | 54t | 23sq.ft. | 1565sq.ft. | none | FCCC M2 |
| B22A | 4-6-2 | 54in | 18x22in | 180psi | 38t | 57t | 23sq.ft. | 1255sq.ft. | 205sq.ft. | FCCC M2A |
| B23 | 4-6-2 | 54in | 20x24in | 160psi | 36t | 56t | 24sq.ft. | 855sq.ft. | 255sq.ft. | FCCC M3A |
| B24 | 4-6-2 | 54in | 20x24in | 170psi | 37t | 60t | 25sq.ft. | 1370sq.ft. | 370sq.ft. | FCCC M4A |
| B25 | 4-6-2 | 54in | 21x24in | 180psi | 40t | 63t | 29sq.ft. | 1895sq.ft. | 305sq.ft. | FCCC M5A |
| B50 | 4-6-0 | 40in | 14x18in | 155psi | 16t | 28t | 12sq.ft. | 670sq.ft. | none | BH 1890 |
| B51 | 4-6-0 | 40in | 14x18in | 165psi | 16t | 28t | 13sq.ft. | 680sq.ft. | none | SS 1890,1 |
| B53 | 4-6-0 | 43in | 15x22in | 170psi | 30t | 37t | 16sq.ft. | 1060sq.ft. | none | Baldwin 1908 |
| B54 | 4-6-2 | 54in | 17x22in | 170psi | 30t | 50t | 24sq.ft. | 1400sq.ft. | 415sq.ft. | Maffei 1910 |
| C1 | 2-6-0 | 43in | 13¾x19in | 140psi | 22t | 24t | 11sq.ft. | 685sq.ft. | none | FL 1889 |
| C2 | 2-8-0 | 42in | 16x24in | 175psi | 34t | 38t | 15sq.ft. | 1075sq.ft. | none | SS 1889 |
| C3 | 2-8-0 | 38in | 16x20in | 140psi | 33t | 38t | 17sq.ft. | 1000sq.ft. | none | Cockerill 1882 |
| C5 | 0-6-6-0 | 43in | 13/20½x21¾in | 170psi | 46t | 46t | 32sq.ft. | 1770sq.ft. | none | Mallet |
| C6 | 4-8-0 | 42in | 18x22in | 180psi | 43t | 55t | 28sq.ft. | 1620sq.ft. | none | FCCN 172-177 |
| C6 | 4-8-0 | 42in | 18(1)/26(1)x22in | 180psi | 43t | 55t | 28sq.ft. | 1620sq.ft. | none | FCCN 178 (orig.) |
| C6 | 4-8-0 | 42in | 18x22in | 180psi | 41t | 53t | 38sq.ft. | 1420sq.ft. | 410sq.ft. | Rebuilt |
| C6 | 2-8-2 | 42in | 18x22in | 180psi | 52t | 72t | 38sq.ft. | 1785sq.ft. | 485sq.ft. | Rebuilt |
| C7-10 | 2-8-2 | 42in | 18x22in | 170psi | 45t | 59t | 27sq.ft. | 1540sq.ft. | 430sq.ft. | Rebuilt |
| C9 | 2-8-2 | 42in | 17½x22in | 170psi | 44t | 59t | 27sq.ft. | 1855sq.ft. | none | Original |
| C10 | 2-8-2 | 42in | 17x22in | 180psi | 41t | 58t | 27sq.ft. | 1875sq.ft. | none | Original |
| C11 | 2-8-2 | 42in | 18x22in | 180psi | 46t | 60t | 27sq.ft. | 1595sq.ft. | 440sq.ft. | Baldwin 1920 |
| C12 | 4-8-2 | 50in | 19x24in | 200psi | 54t | 84t | 44sq.ft. | 2575sq.ft. | 650sq.ft. | Baldwin 1921 |
| C13 | 2-8-2 | 42in | 18x22in | 170psi | 45t | 58t | 44sq.ft. | 1400sq.ft. | 405sq.ft. | Also ex C13A |
| C13A | 2-8-2 | 42in | 18x22in | 170psi | 46t | 61t | 44sq.ft. | 1400sq.ft. | 405sq.ft. | Condensing |
| C14 | 4-8-2 | 50in | 20x24in | 200psi | 54t | 79t | 44sq.ft. | 2410sq.ft. | 730sq.ft. | Also ex C15 |
| C15 | 4-8-2 | 50in | 20x24in | 200psi | 55t | 84t | 44sq.ft. | 2410sq.ft. | 730sq.ft. | Condensing |
| C16 | 4-8-2 | 50in | 19¾x24in | 200psi | 56t | 82t | 44sq.ft. | 2580sq.ft. | 630sq.ft. | Baldwin, ALCo |
| C21-3 | 4-6-0 | 48in | 16x22in | 150psi | 25t | 32t | 17sq.ft. | 815sq.ft. | none | FCCC C1-3 |
| C24 | 4-6-0 | 48in | 16x22in | 150psi | 27t | 36t | 17sq.ft. | 815sq.ft. | none | FCCC C4 |
| C24A | 4-6-0 | 48in | 17x22in | 150psi | 27t | 36t | 17sq.ft. | 710sq.ft. | 165sq.ft. | FCCC C4A |
| C25 | 4-6-2 | 48in | 18x24in | 200psi | 40t | 55t | 24sq.ft. | 1205sq.ft. | none | FCCC C5 |
| C26 | 2-8-2 | 49in | 20x26in | 160psi | 51t | 64t | 31sq.ft. | 1825sq.ft. | 340sq.ft. | FCCC C6A |
| C27 | 4-8-0 | 42in | 18x22in | 180psi | 43t | 55t | 28sq.ft. | 1620sq.ft. | none | 249 tubes |
| C27 | 4-8-0 | 42in | 18x22in | 180psi | 43t | 55t | 28sq.ft. | 1560sq.ft. | none | 239 tubes |
| C28 | 2-8-4T | 43in | 19x24in | 175psi | 55t | 83t | 25sq.ft. | 1970sq.ft. | none | FCCC C8 |
| C29,30 | 2-8-2 | 48in | 21½x24in | 180psi | 45t | 60t | 36sq.ft. | 2265sq.ft. | 570sq.ft. | FCCC C9A, C10A |
| C31 | 2-8-2 | 40in | 16x20in | 180psi | 37t | 49t | 39sq.ft. | 1120sq.ft. | 275sq.ft. | FCCC C11A |
| C50 | 2-8-4T | 47in | 20½x23½in | 170psi | 48t | 80t | 38sq.ft. | 1320sq.ft. | 375sq.ft. | Borsig 1911 |
| C51 | 2-8-4T | 42in | 19x20in | 200psi | 52t | 83t | 27sq.ft. | 1805sq.ft. | none | Original |
| C51 | 2-8-4T | 42in | 19x20in | 200psi | 52t | 84t | 27sq.ft. | 1660sq.ft. | 375sq.ft. | Rebuilt |
| C52 | 2-8-4T | 42in | 18x20in | 210psi | 48t | 74t | 27sq.ft. | 1630sq.ft. | none | VF 1909 |
| D1 | 0-6-0T | 45in | 14x22in | 130psi | 27t | 27t | 13sq.ft. | 675sq.ft. | none | KS 1888 |
| D2 | 0-6-2T | 36in | 13½x20in | 140psi | 25t | 30t | 9sq.ft. | 615sq.ft. | none | KS 1904 |
| D3 | 0-6-2T | 45in | 16x20in | 200psi | 42t | 50t | 15sq.ft. | 1025sq.ft. | none | Henschel 1909 |
| D4,7 | 0-6-0T | 28in | 10¼x14¼in | 170psi | 11t | 11t | 6sq.ft. | 280sq.ft. | none | Borsig 1910 |
| D5 | 0-6-0T | 36in | 13x18in | 150psi | 20t | 20t | 8sq.ft. | 390sq.ft. | none | Original |
| D5 | 0-6-0T | 36in | 13x18in | 140psi | 19t | 19t | 6sq.ft. | 505sq.ft. | none | Rebuilt |
| D8 | 0-6-0T | 33in | 10¾x15in | 130psi | 17t | 17t | 7sq.ft. | 350sq.ft. | none | FL 1891 |
| D9 | 0-6-0T | 39in | 14x20in | 145psi | 29t | 29t | 8sq.ft. | 675sq.ft. | none | KS 1908 |
| D11 | 2-6-2T | 39in | 14½x20in | 170psi | 28t | 42t | 12sq.ft. | 735sq.ft. | none | Dubs 1888 |
| D12 | 0-6-0T | 30in | 8x12in | 160psi | 11t | 11t | 3sq.ft. | 165sq.ft. | none | Hunslet 1889 |
| D13 | 0-4-0T | 31in | 12¾x17in | 170psi | 18t | 18t | 10sq.ft. | 510sq.ft. | none | Maffei 1928 |
| D51 | 0-6-2T | 44in | 16x20in | 170psi | 42t | 50t | 15sq.ft. | 915sq.ft. | none | O&K 1911 |
| D52 | 2-6-2T | 50in | 14x20in | 170psi | 32t | 36t | 14sq.ft. | 725sq.ft. | none | Baldwim 1905 |
| E1,20 | 0-8-2RT | 37in | 19x19¾in | 170psi | 53t | 63t | 26sq.ft. | 1775sq.ft. | none | 17x17¾in rack |
| E2,3 | 2-10-2 | 48in | 22x28in | 200psi | 73t | 90t | 44sq.ft. | 2645sq.ft. | 705sq.ft. | Baldwin 1921-6 |
| E4 | 2-10-2 | 48in | 23x24in | 200psi | 75t | 91t | 44sq.ft. | 2415sq.ft. | 885sq.ft. | Henschel 1937 |
| E5 | 2-10-2 | 48in | 23x24in | 200psi | 75t | 91t | 44sq.ft. | 2620sq.ft. | 720sq.ft. | Skoda 1949 |
| E11 | 4-8-2+2-8-4T | 48in | 18x26in(4) | 185psi | 114t | 184t | 55sq.ft. | 2415sq.ft. | 595sq.ft. | Garratt |
| E12 | 2-6-2+2-6-2T | 42in | 15x22in(4) | 180psi | 67t | 105t | 39sq.ft. | 1850sq.ft. | 335sq.ft. | Garratt |
| E21 | 2-6-4RT | 35in | 11¾x19¾in | 200psi | 32t | 50t | 18sq.ft. | 1020sq.ft. | none | 11¾x17¾in rack |

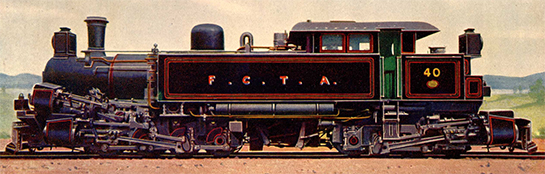

| E22 | 0-8-6RT | 36in | 16½x19in | 200psi | 51t | 92t | 31sq.ft. | 1900sq.ft. | 13x14in (orig.) & 18x19in rack | |
| E23 | 0-8-6RT | 36in | 16½x19in | 200psi | 55t | 98t | 34sq.ft. | 2040sq.ft. | none | 18½x19in rack |
| E24 | 0-12-2RT | 37in | 26¾x19½in | 200psi | 99t | 110t | 38sq.ft. | 2280sq.ft. | 930sq.ft. | 15¾x15¾in rack |
| L1A | 4-6-4T | 54in | 20x24in | 160psi | 44t | 79t | 26sq.ft. | 1415sq.ft. | 255sq.ft. | 112 tubes |
| L1A | 4-6-4T | 54in | 20x24in | 160psi | 44t | 79t | 26sq.ft. | 1345sq.ft. | 255sq.ft. | 104 tubes |
| L2A | 4-6-4T | 54in | 20x24in | 160psi | 47t | 88t | 26sq.ft. | 1495sq.ft. | 270sq.ft. | NB 1926 |
| P1 | 4-4-0 | 51in | 14x18in | 150psi | 15t | 25t | 10sq.ft. | 600sq.ft. | none | Dubs 1887 |
| P2 | 4-4-0 | 50in | 14x20in | 150psi | 21t | 32t | 13sq.ft. | 810sq.ft. | none | BP 1884 |
| P3 | 4-4-0 | 57in | 16x22in | 170psi | 22t | 33t | 16sq.ft. | 810sq.ft. | none | Neilson 1892-6 |
| P4 | 4-4-2 | 57in | 17x24in | 200psi | 26t | 50t | 24sq.ft. | 1080sq.ft. | none | NB 1906 |
| S1 | 0-6-0 | 39in | 16x20½in | 130psi | 34t | 34t | 10sq.ft. | 880sq.ft. | none | Cockerill 1882 |
| S3 | 0-6-0 | 44in | 13½x20in | 130psi | 23t | 23t | 13sq.ft. | 710sq.ft. | none | FW 1874 |
| S4 | 2-6-0 | 39in | 14x18in | 150psi | 20t | 27t | 10sq.ft. | 965sq.ft. | none | Dubs 1887 |
| S5 | 0-4-0T | 30in | 8x12in | 160psi | 10t | 10t | 6sq.ft. | 160sq.ft. | none | Kitson 1888 |
| S7 | 0-6-0T | 45in | 14x22in | 150psi | 33t | 33t | 7sq.ft. | 890sq.ft. | none | Original D1 |
| S8 | 0-6-0T | 43in | 14x20in | 160psi | 30t | 30t | 11sq.ft. | 630sq.ft. | none | KS 1906 |
| S8T | 2-6-0 | 43in | 14x20in | 150psi | 21t | 25t | 11sq.ft. | 630sq.ft. | none | Ex S8 |
| S9 | 0-6-0T | 42in | 14x18in | 140psi | 33t | 33t | 10sq.ft. | 630sq.ft. | none | Brush 1905 |
| S10 | 0-6-2T | 45in | 16x20in | 180psi | 39t | 48t | 13sq.ft. | 955sq.ft. | none | NB 1906 |
| S11 | 0-6-4T | 45in | 16x20in | 180psi | 41t | 58t | 13sq.ft. | 935sq.ft. | none | Kitson 1911 |
| X1 | 0-4-0T | 30in | 6½x12in | 120psi | 7t | 7t | 3sq.ft. | 100sq.ft. | none | MW 1883 |
| X2 | 0-6-0T | 24in | 8¼x12in | 130psi | 8t | 8t | 4sq.ft. | 220sq.ft. | none | O&K 1910 |
